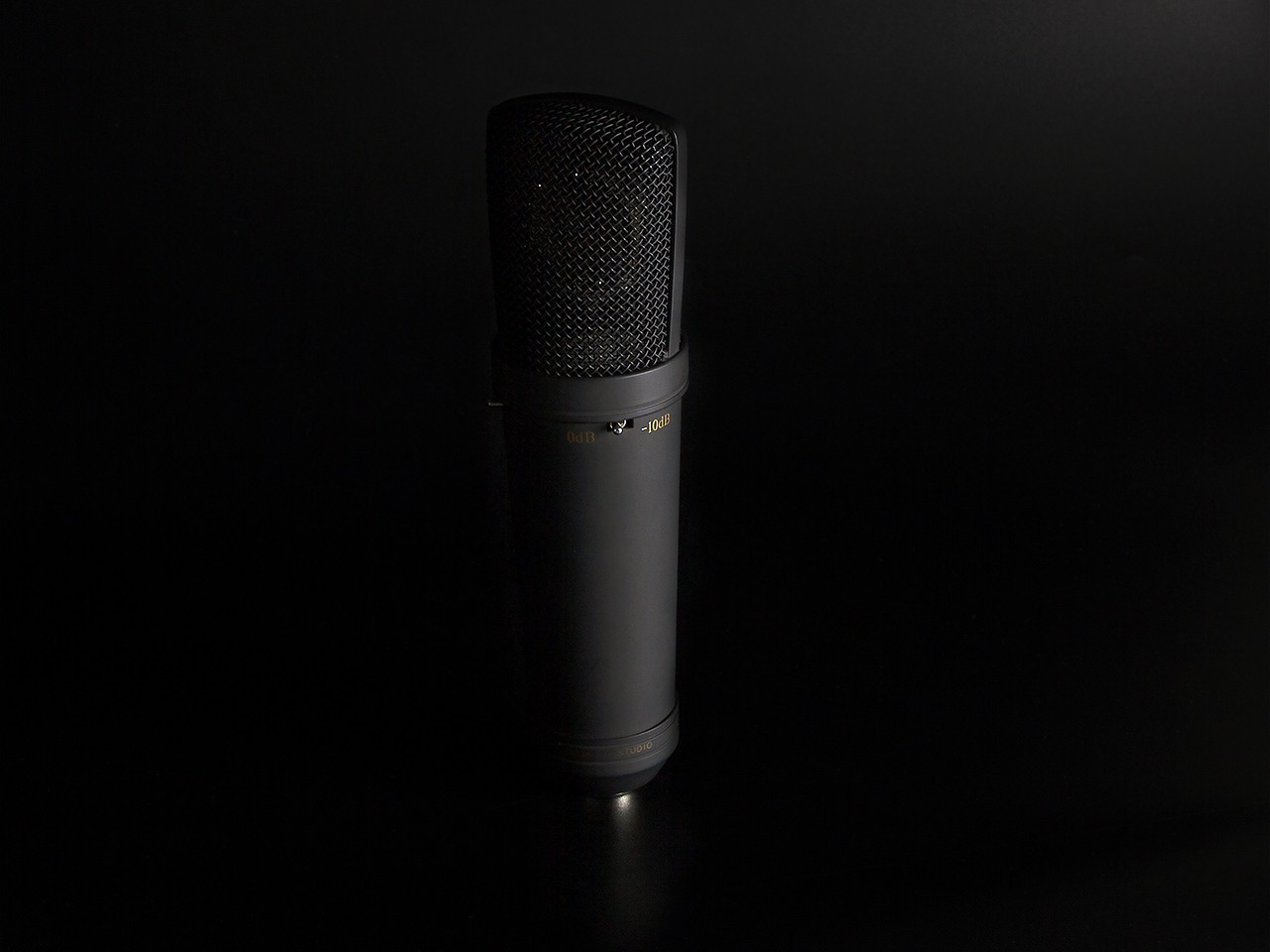

Large diaphragm microphones are widely used to record vocals and other featured sound sources due to their low noise and ability to capture more acoustic energy than smaller diaphragm mics. Designed with a large, highly sensitive condenser capsule, the 2003A captures the detail and rich sound of vocals, acoustic/electric guitars, and percussion recordings. A selectable bass roll off reduces unwanted low frequency rumble and a 10db pad attenuates the mic so that it can reproduce a wide range of sounds. Included are a shock mount to minimize unwanted vibrations and a carrying case.


Condenser microphone


32mm capsule with Gold-sputtered, 3 micron diaphragm

Frequency response

20 Hz – 20 kHz

Polar pattern



 -42.9 dB re 1 V/Pa


200 ohms

Equivalent noise

-11 dB (A-weighted IEC 651)

S/N ratio

83 dB

Max SPL for .5% THD

152 dB SPL

Size and weight

50mm x 190mm / 1.97 in. x 7.48 in.
453.59g / 1 lb

Metal finish


Included accessories

MXL56 mount

2003A Mic, MXL-56 High Isolation Shockmount, Microfiber Cleaning Cloth, Carrying Pouch
