V67N
Small Diaphragm Instrument Mic
The V67N is a robust pencil condenser microphone providing just the right balance of presence and clarity with a wide frequency response. Hand-selected components, internal Mogami wiring and transformer-balanced output deliver a clean solid bottom with crystal clear high end response. Two interchangeable capsules make it a perfect selection for drum, piano, guitar, choir and room recording as well as live performance. For a pure and natural tone the V67N is an excellent choice.
• Pencil condenser microphone that faithfully replicates instruments
• Ideal for stringed instruments, cymbals, and percussion

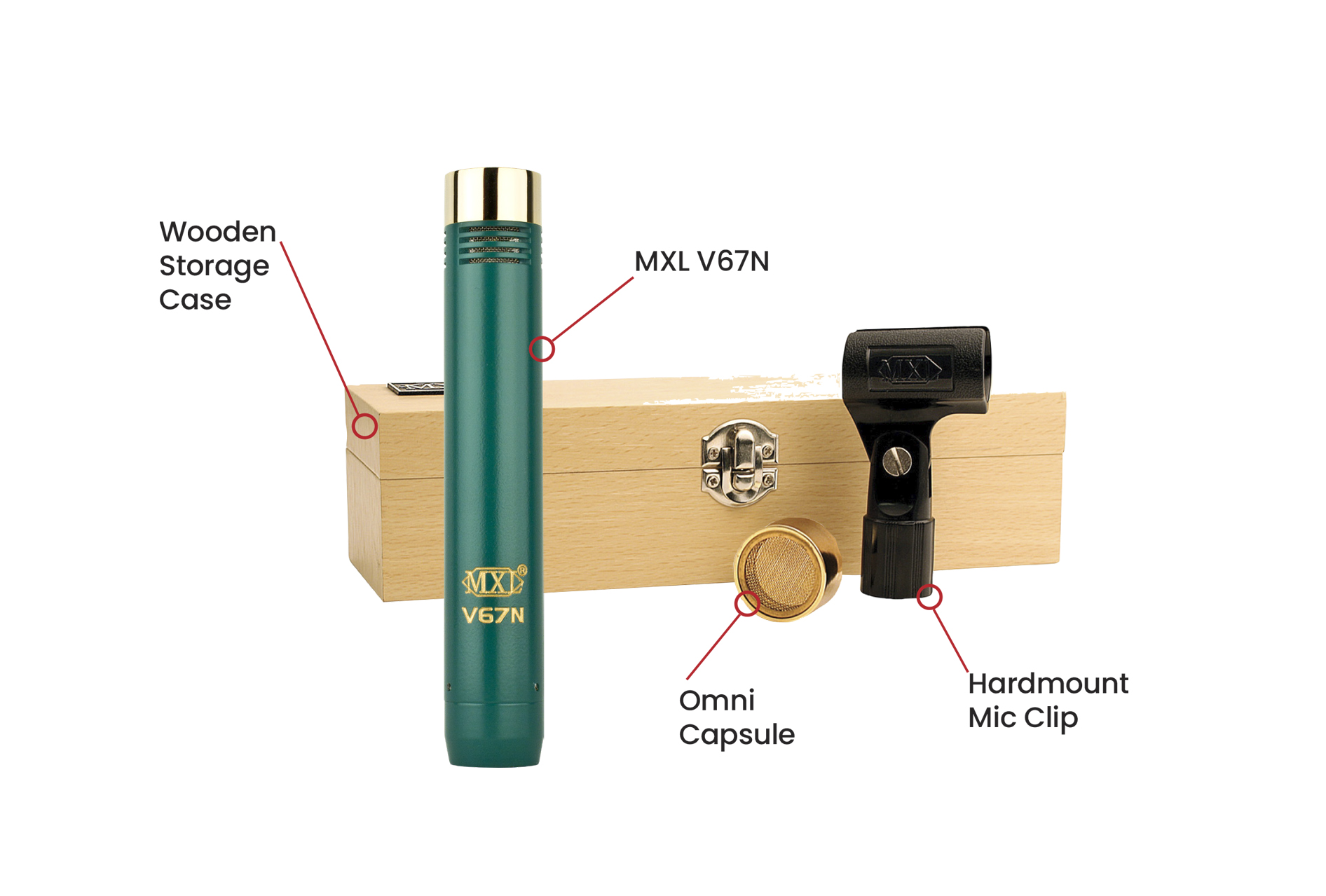

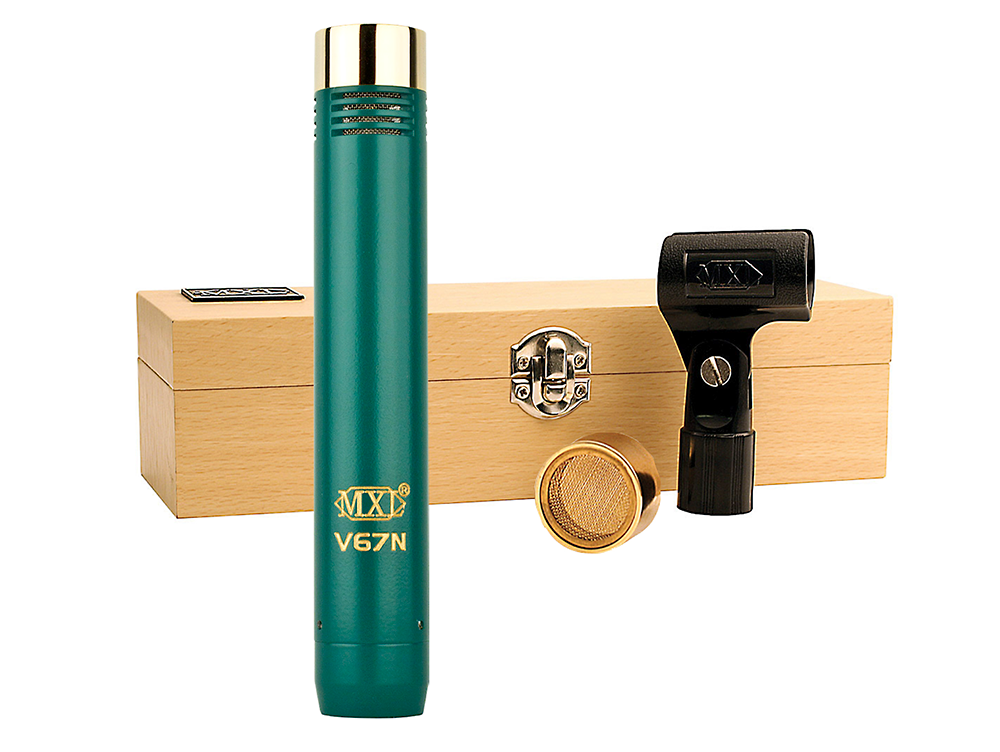

• Interchangeable cardioid and omni-directional capsules for flexibility
• Flat response for recordings that are pure and natural
Type
Pressure gradient condenser mic
Diaphragm
6 micron gold-sputtered
Capsule size
22mm/.87 in.
Frequency response
20Hz – 20kHz
Polar pattern
Cardioid/Omni
Sensitivity
-49 dB re 1 V/Pa
Impedance
150 ohms
Output
Transformer-balanced
Equivalent noise
16 dB (A-weighted IEC 651)
S/N Ratio
78 dB
Max SPL for .5% THD
148 dB SPL
Power requirements
48V phantom power (+/- 4V)
Current consumption
5.2mA
Size and weight
124mm x 23mm/4.88 in. x .91 in.
0.2 lbs/90.72g
Metal finish
Green with gold grill
Polar Pattern
Polar Pattern
